PixelHue P80

Specs

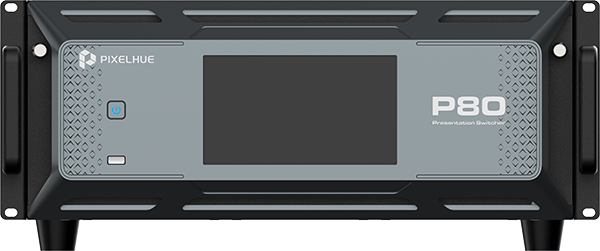

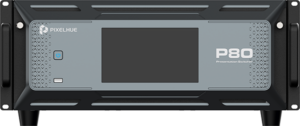

The Pixelhue P80 is a high-end 4K presentation switcher designed for demanding live productions, large-scale events and permanent AV installations. It combines high-resolution signal processing, multi-layer presentation control and flexible output configurations in one platform.

For BeamBrothers, the P80 fits naturally into projects where high-quality projection, complex signal routing and multi-screen image processing need to work together reliably.

What makes the P80 interesting

  • 4K60 processing: real 4K60p 4:4:4 10-bit internal video processing.

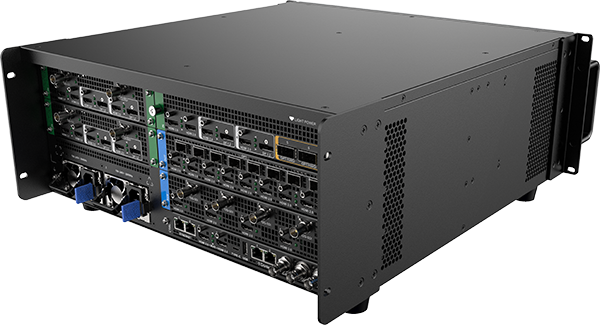

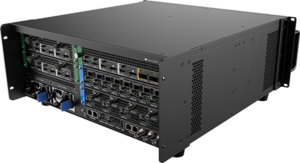

  • Multiple 4K sources: 12 fixed concurrent 4K inputs, with HDMI 2.0, DisplayPort 1.2 and 12G-SDI connectivity.
  • Flexible outputs: up to four 4K concurrent outputs, plus four 4K Flex outputs and four 12G-SDI matrix outputs.
  • Multi-layer processing: up to 8 × 4K mixing main layers and 4 × 4K PIP layers.
  • Edge blending: the Flex outputs can be configured for independent screens or edge-blended widescreens—particularly relevant for large projection systems.
  • HDR: support for HDR10, HLG and SDR workflows.
  • Presets: up to 256 presets and 256 layer presets can be stored for rapid show recall.
  • Control: operation is possible from the integrated 7-inch touchscreen, PixelFlow software or the Pixelhue U5/U5 Pro event controllers.

Why this works well with BeamBrothers

BeamBrothers’ strength is not simply supplying individual projectors or processors, but engineering the complete visual infrastructure around the desired result. That makes a processor such as the P80 particularly useful.

A typical BeamBrothers system could combine:

Media servers → Pixelhue P80 → signal distribution → projectors → edge blending → large-format image

The P80 can sit at the heart of that workflow, managing multiple sources and screens while providing the processing required for complex projection environments.

For example, a large event could require several 4K sources, multiple projectors, different screen formats and seamless switching between presentation content, video and live feeds. The P80 provides the signal-processing and screen-management layer that can bring those elements together. Its Flex outputs also support edge-blended widescreens, making it relevant to BeamBrothers’ experience with widescreen and large projection applications. pixelhue.com

BeamBrothers + Pixelhue

The combination is especially interesting because Pixelhue provides the processing platform while BeamBrothers brings the practical AV and projection engineering expertise around it.

BeamBrothers can integrate the P80 into systems involving high-end projection, media servers, large-format screens, multi-projector setups, edge blending and complex show control.

Pixelhue also currently lists a dedicated P80 Link function for connecting two P80 units, allowing video sources to be shared between the processors and supporting larger, more complex systems.

In short: Pixelhue P80 provides the processing power; BeamBrothers turns that capability into a complete, engineered visual system.

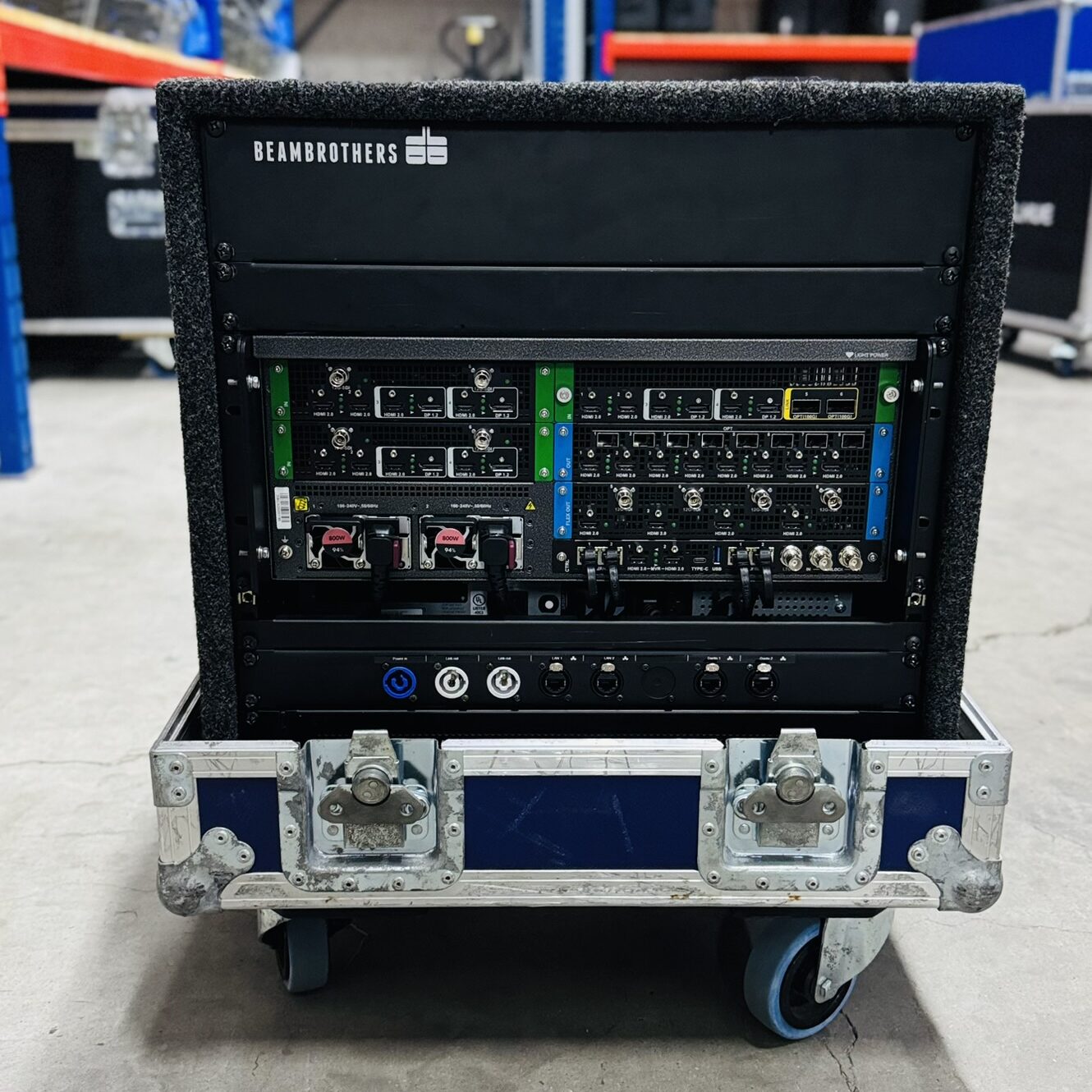

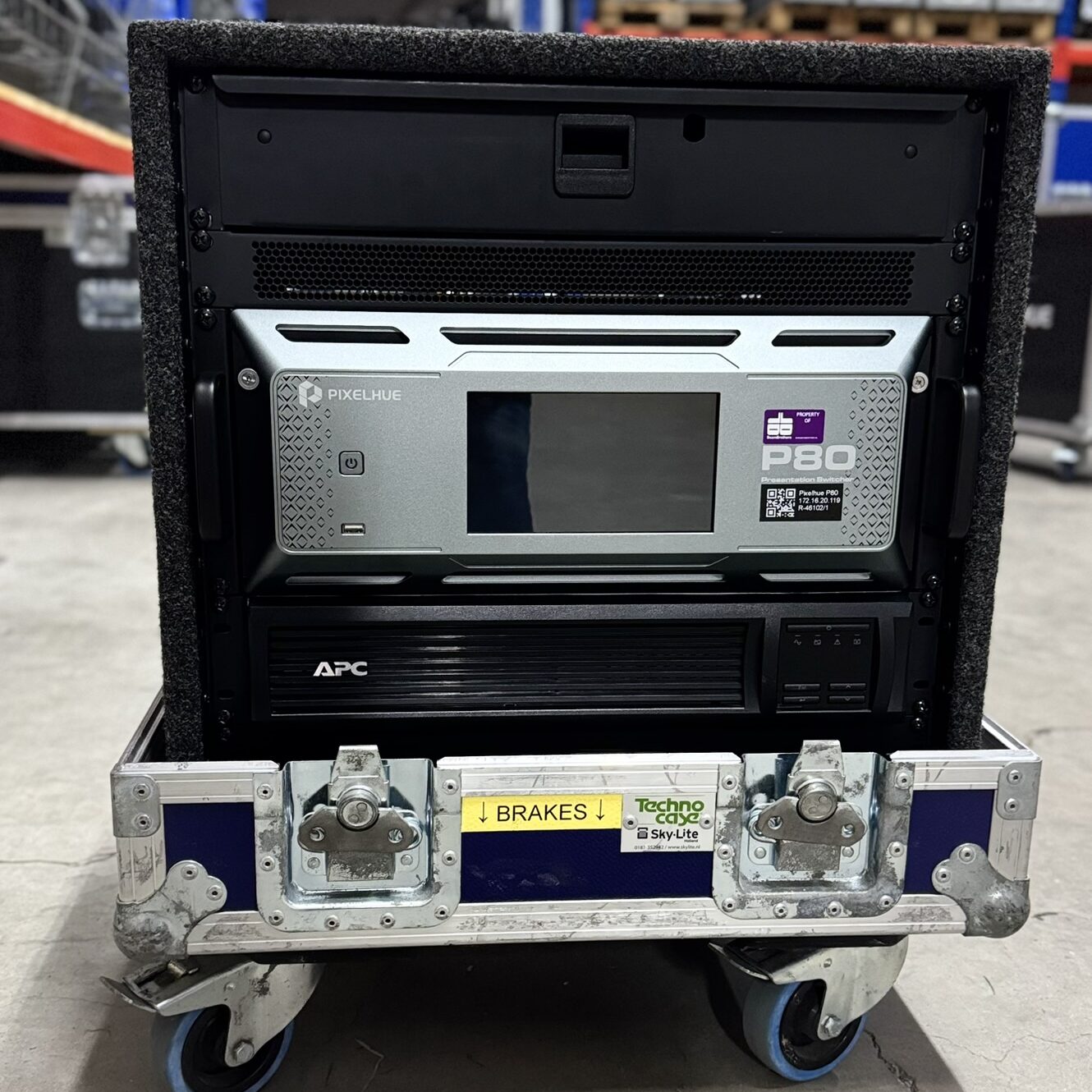

BeamBrothers has this equipment available for rental. Please call or mailto info@beambrothers.nl for pricing info starting from a single day till more day rental.
